GF5
Regular price
$365.00
Sale
per wheel
Ships from Los Angeles. Fitment guaranteed with accurate vehicle and modification details.
Questions? Call 323-887-8600, Mon to Fri 8am to 5pm PST

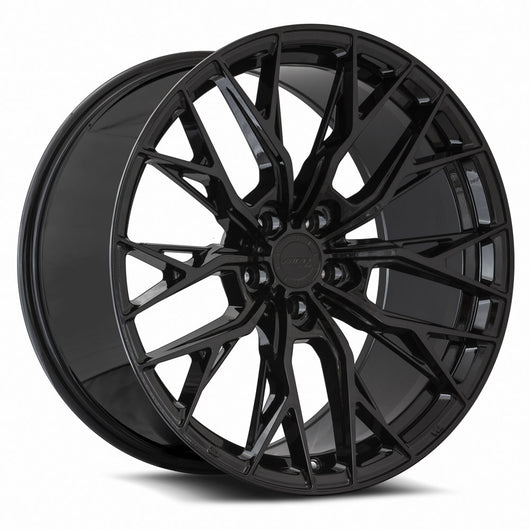

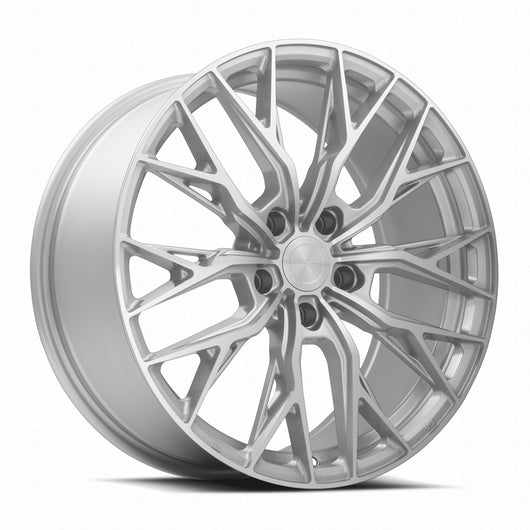

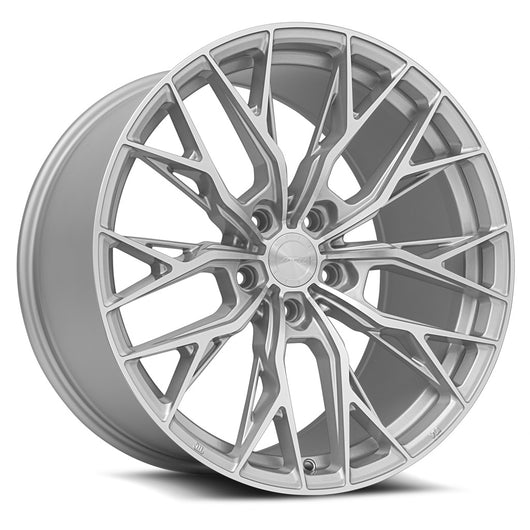

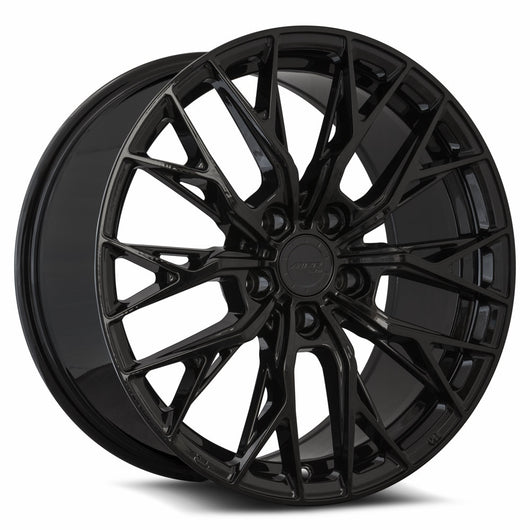

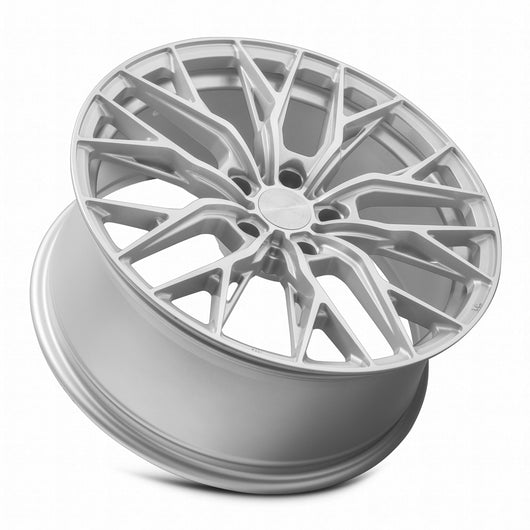

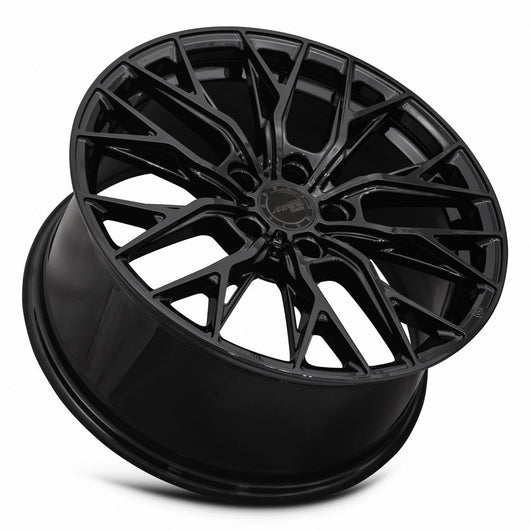

The MRR GF5 is a flow forged aftermarket wheel by MRR Wheels with a concave split spoke face. It comes in Gloss Black and Silver Machine Face, in 18, 19, 20 and 21 inch diameters from 8.5 to 11 inches wide, drilled for 5x108, 5x112, 5x114.3 and 5x120 bolt patterns.
Staggered setups include 19x8.5 front with 19x9.5 rear, 20x9 or 20x10 front with 20x11 rear, and 21x9 front with 21x10.5 rear. The GF5 also comes in hub centric fitments for the C8 Corvette and the 6th gen Camaro, listed in the fitment table below.
Specifications
- Brand: MRR Wheels
- Model: GF5
- Construction: Flow forged (also called flow formed or rotary forged)
- Design: Concave split spoke
- Finishes: Gloss Black, Silver Machine Face
- Sizes: 18x8.5, 19x8.5, 19x9.5, 20x9, 20x10, 20x11, 21x9, 21x10.5
- Bolt patterns: 5x108, 5x112, 5x114.3, 5x120
- Offsets: ET20 to ET48 depending on size and bolt pattern
- Center bore: 66.6 mm (5x112), 72.6 mm (5x120), 73.1 mm (5x108 and 5x114.3); 67.1 mm on the C8 Corvette and Camaro fitments
- Load rating: 700 kg (1,543 lbs) per wheel on 18 inch, 815 kg (1,797 lbs) per wheel on 19 to 21 inch
- Weight: 22.9 to 34.4 lbs depending on size
- Center cap: GF5 center cap (shop caps)
- Warranty: One year against defects in materials and workmanship
Sizes, weight and load rating
| Size | Weight (approx.) | Load rating |
|---|---|---|
| 18x8.5 | 25.9 lbs | 700 kg (1,543 lbs) |
| 19x8.5 | 27.4 lbs (22.9 lbs for the C8 fitment) | 815 kg (1,797 lbs) |
| 19x9.5 | 27.6 lbs | 815 kg (1,797 lbs) |
| 20x9 | Not listed | 815 kg (1,797 lbs) |
| 20x10 | 29.8 lbs | 815 kg (1,797 lbs) |
| 20x11 | 28.2 to 31.4 lbs | 815 kg (1,797 lbs) |
| 21x9 | 34.4 lbs | 815 kg (1,797 lbs) |
| 21x10.5 | 32.8 lbs | 815 kg (1,797 lbs) |
Offsets by bolt pattern
| Size | 5x108 (CB 73.1) | 5x112 (CB 66.6) | 5x114.3 (CB 73.1) | 5x120 (CB 72.6) |
|---|---|---|---|---|
| 18x8.5 | ET35 | ET30, ET35 | ET30, ET35 | ET30, ET35 |
| 19x8.5 | ET35 | ET25, ET35 | ET20, ET35 | ET20, ET35 |
| 19x9.5 | ET40 | ET25, ET40 | ET20, ET40 | ET20, ET40 |
| 20x9 | ET38 | ET25, ET38 | ET20, ET38 | ET20, ET38 |
| 20x10 | ET40 | ET25, ET40 | ET20, ET40 | ET20, ET40 |
| 20x11 | ET40 | ET25, ET40 | ET20, ET40 | ET20, ET40 |
| 21x9 | ET38 | ET25, ET38 | ET20, ET38 | ET20, ET38 |
| 21x10.5 | ET40 | ET25, ET40 | ET24, ET38 | ET24, ET38 |
Vehicle fitments
| Vehicle | Front | Rear | Bolt pattern | Center bore |
|---|---|---|---|---|
| C8 Corvette Stingray | 19x8.5 ET38 | 20x11 ET48 | 5x120 | 67.1 mm |
| 6th gen Chevrolet Camaro | 20x10 ET23 | 20x11 ET43 | 5x120 | 67.1 mm |
All sizes and part numbers
Show all 120 GF5 part numbers
| Size | PCD | ET | CB | Backspacing | Gloss Black | Silver Machine Face |
|---|---|---|---|---|
| 18x8.5 | 5x108 | 35 | 73.1 | 6.13 in (155.7 mm) | GF0518855xx30BK-50835 | GF0518855xx30S-50835 |
| 18x8.5 | 5x112 | 30 | 66.6 | 5.93 in (150.7 mm) | GF0518855xx30BK-51230 | GF0518855xx30S-51230 |
| 18x8.5 | 5x112 | 35 | 66.6 | 6.13 in (155.7 mm) | GF0518855xx30BK-51235 | GF0518855xx30S-51235 |
| 18x8.5 | 5x114.3 | 30 | 73.1 | 5.93 in (150.7 mm) | GF0518855xx30BK-51430 | GF0518855xx30S-51430 |
| 18x8.5 | 5x114.3 | 35 | 73.1 | 6.13 in (155.7 mm) | GF0518855xx30BK-51435 | GF0518855xx30S-51435 |
| 18x8.5 | 5x120 | 30 | 72.6 | 5.93 in (150.7 mm) | GF0518855xx30BK-52030 | GF0518855xx30S-52030 |
| 18x8.5 | 5x120 | 35 | 72.6 | 6.13 in (155.7 mm) | GF0518855xx30BK-52035 | GF0518855xx30S-52035 |
| 19x8.5 | 5x108 | 35 | 73.1 | 6.13 in (155.7 mm) | GF0519855xx20BK-50835 | GF0519855xx20S-50835 |
| 19x8.5 | 5x112 | 25 | 66.6 | 5.73 in (145.7 mm) | GF0519855xx20BK-51225 | GF0519855xx20S-51225 |
| 19x8.5 | 5x112 | 35 | 66.6 | 6.13 in (155.7 mm) | GF0519855xx20BK-51235 | GF0519855xx20S-51235 |
| 19x8.5 | 5x114.3 | 20 | 73.1 | 5.54 in (140.7 mm) | GF0519855xx20BK-51420 | GF0519855xx20S-51420 |
| 19x8.5 | 5x114.3 | 35 | 73.1 | 6.13 in (155.7 mm) | GF0519855xx20BK-51435 | GF0519855xx20S-51435 |
| 19x8.5 | 5x120 | 20 | 72.6 | 5.54 in (140.7 mm) | GF0519855xx20BK-52020 | GF0519855xx20S-52020 |
| 19x8.5 | 5x120 | 35 | 72.6 | 6.13 in (155.7 mm) | GF0519855xx20BK-52035 | GF0519855xx20S-52035 |
| 19x8.5 | 5x120 | 38 | 67.1 | 6.25 in (158.7 mm) | GF05198552038BK | GF05198552038S |
| 19x9.5 | 5x108 | 40 | 73.1 | 6.82 in (173.4 mm) | GF0519955xx20BK-50840 | GF0519955xx20S-50840 |
| 19x9.5 | 5x112 | 25 | 66.6 | 6.23 in (158.4 mm) | GF0519955xx20BK-51225 | GF0519955xx20S-51225 |
| 19x9.5 | 5x112 | 40 | 66.6 | 6.82 in (173.4 mm) | GF0519955xx20BK-51240 | GF0519955xx20S-51240 |
| 19x9.5 | 5x114.3 | 20 | 73.1 | 6.04 in (153.4 mm) | GF0519955xx20BK-51420 | GF0519955xx20S-51420 |
| 19x9.5 | 5x114.3 | 40 | 73.1 | 6.82 in (173.4 mm) | GF0519955xx20BK-51440 | GF0519955xx20S-51440 |
| 19x9.5 | 5x120 | 20 | 72.6 | 6.04 in (153.4 mm) | GF0519955xx20BK-52020 | GF0519955xx20S-52020 |
| 19x9.5 | 5x120 | 40 | 72.6 | 6.82 in (173.4 mm) | GF0519955xx20BK-52040 | GF0519955xx20S-52040 |
| 20x9 | 5x108 | 38 | 73.1 | 6.50 in (165.0 mm) | GF0520905xx20BK-50838 | GF0520905xx20S-50838 |
| 20x9 | 5x112 | 25 | 66.6 | 5.98 in (152.0 mm) | GF0520905xx20BK-51225 | GF0520905xx20S-51225 |
| 20x9 | 5x112 | 38 | 66.6 | 6.50 in (165.0 mm) | GF0520905xx20BK-51238 | GF0520905xx20S-51238 |
| 20x9 | 5x114.3 | 20 | 73.1 | 5.79 in (147.0 mm) | GF0520905xx20BK-51420 | GF0520905xx20S-51420 |
| 20x9 | 5x114.3 | 38 | 73.1 | 6.50 in (165.0 mm) | GF0520905xx20BK-51438 | GF0520905xx20S-51438 |
| 20x9 | 5x120 | 20 | 72.6 | 5.79 in (147.0 mm) | GF0520905xx20BK-52020 | GF0520905xx20S-52020 |
| 20x9 | 5x120 | 38 | 72.6 | 6.50 in (165.0 mm) | GF0520905xx20BK-52038 | GF0520905xx20S-52038 |
| 20x10 | 5x108 | 40 | 73.1 | 7.07 in (179.7 mm) | GF0520A05xx20BK-50840 | GF0520A05xx20S-50840 |
| 20x10 | 5x112 | 25 | 66.6 | 6.48 in (164.7 mm) | GF0520A05xx20BK-51225 | GF0520A05xx20S-51225 |
| 20x10 | 5x112 | 40 | 66.6 | 7.07 in (179.7 mm) | GF0520A05xx20BK-51240 | GF0520A05xx20S-51240 |
| 20x10 | 5x114.3 | 20 | 73.1 | 6.29 in (159.7 mm) | GF0520A05xx20BK-51420 | GF0520A05xx20S-51420 |
| 20x10 | 5x114.3 | 40 | 73.1 | 7.07 in (179.7 mm) | GF0520A05xx20BK-51440 | GF0520A05xx20S-51440 |
| 20x10 | 5x120 | 20 | 72.6 | 6.29 in (159.7 mm) | GF0520A05xx20BK-52020 | GF0520A05xx20S-52020 |
| 20x10 | 5x120 | 23 | 67.1 | 6.41 in (162.7 mm) | GF0520A05xx20BK-52023 | GF0520A05xx20S-52023 |
| 20x10 | 5x120 | 40 | 72.6 | 7.07 in (179.7 mm) | GF0520A05xx20BK-52040 | GF0520A05xx20S-52040 |
| 20x11 | 5x108 | 40 | 73.1 | 7.57 in (192.4 mm) | GF0520A65xx20BK-50840 | GF0520A65xx20S-50840 |
| 20x11 | 5x112 | 25 | 66.6 | 6.98 in (177.4 mm) | GF0520A65xx20BK-51225 | GF0520A65xx20S-51225 |
| 20x11 | 5x112 | 40 | 66.6 | 7.57 in (192.4 mm) | GF0520A65xx20BK-51240 | GF0520A65xx20S-51240 |
| 20x11 | 5x114.3 | 20 | 73.1 | 6.79 in (172.4 mm) | GF0520A65xx20BK-51420 | GF0520A65xx20S-51420 |
| 20x11 | 5x114.3 | 40 | 73.1 | 7.57 in (192.4 mm) | GF0520A65xx20BK-51440 | GF0520A65xx20S-51440 |
| 20x11 | 5x120 | 20 | 72.6 | 6.79 in (172.4 mm) | GF0520A65xx20BK-52020 | GF0520A65xx20S-52020 |
| 20x11 | 5x120 | 40 | 72.6 | 7.57 in (192.4 mm) | GF0520A65xx20BK-52040 | GF0520A65xx20S-52040 |
| 20x11 | 5x120 | 43 | 67.1 | 7.69 in (195.4 mm) | GF0520A65xx20BK-52043 | GF0520A65xx20S-52043 |
| 20x11 | 5x120 | 48 | 67.1 | 7.89 in (200.4 mm) | GF0520A652048BK | GF0520A652048S |
| 21x9 | 5x108 | 38 | 73.1 | 6.50 in (165.0 mm) | GF0521905xx20BK-50838 | GF0521905xx20S-50838 |
| 21x9 | 5x112 | 25 | 66.6 | 5.98 in (152.0 mm) | GF0521905xx20BK-51225 | GF0521905xx20S-51225 |
| 21x9 | 5x112 | 38 | 66.6 | 6.50 in (165.0 mm) | GF0521905xx20BK-51238 | GF0521905xx20S-51238 |
| 21x9 | 5x114.3 | 20 | 73.1 | 5.79 in (147.0 mm) | GF0521905xx20BK-51420 | GF0521905xx20S-51420 |
| 21x9 | 5x114.3 | 38 | 73.1 | 6.50 in (165.0 mm) | GF0521905xx20BK-51438 | GF0521905xx20S-51438 |
| 21x9 | 5x120 | 20 | 72.6 | 5.79 in (147.0 mm) | GF0521905xx20BK-52020 | GF0521905xx20S-52020 |
| 21x9 | 5x120 | 38 | 72.6 | 6.50 in (165.0 mm) | GF0521905xx20BK-52038 | GF0521905xx20S-52038 |
| 21x10.5 | 5x108 | 40 | 73.1 | 7.32 in (186.1 mm) | GF0521A55xx20BK-50840 | GF0521A55xx20S-50840 |
| 21x10.5 | 5x112 | 25 | 66.6 | 6.73 in (171.1 mm) | GF0521A55xx20BK-51225 | GF0521A55xx20S-51225 |
| 21x10.5 | 5x112 | 40 | 66.6 | 7.32 in (186.1 mm) | GF0521A55xx20BK-51240 | GF0521A55xx20S-51240 |
| 21x10.5 | 5x114.3 | 24 | 73.1 | 6.69 in (170.1 mm) | GF0521A55xx20BK-51424 | GF0521A55xx20S-51424 |
| 21x10.5 | 5x114.3 | 38 | 73.1 | 7.25 in (184.1 mm) | GF0521A55xx20BK-51438 | GF0521A55xx20S-51438 |
| 21x10.5 | 5x120 | 24 | 72.6 | 6.69 in (170.1 mm) | GF0521A55xx20BK-52024 | GF0521A55xx20S-52024 |
| 21x10.5 | 5x120 | 38 | 72.6 | 7.25 in (184.1 mm) | GF0521A55xx20BK-52038 | GF0521A55xx20S-52038 |
FAQ
Is the price per wheel or per set?
The price shown is per wheel. Choose quantity 4 for a full set, or 2 of each width for a staggered set.
Is the GF5 a forged wheel?
The GF5 is flow forged, also called flow formed. The center is cast, then the barrel is spun and stretched under heat and pressure, which makes the barrel lighter and stronger than a conventional cast wheel. It is not a fully forged monoblock wheel. For fully forged options, see the MRR Forged Series.
What does PCD | ET | CB mean?
PCD is the bolt pattern, ET is the offset in millimeters and CB is the center bore in millimeters. For example, 5x114.3 | 35 | 73.1 means a 5x114.3 bolt pattern, +35 mm offset and 73.1 mm center bore.
Does the GF5 fit the C8 Corvette?
Yes. The GF5 comes in a hub centric C8 Corvette Stingray fitment: 19x8.5 ET38 front and 20x11 ET48 rear, 5x120 with a 67.1 mm center bore. Complete GF5 sets are on our C8 Corvette wheels page.
Do I need hub centric rings?
If your vehicle hub is smaller than the wheel center bore, use hub centric rings sized to your hub. For example, a Tesla Model 3 or Model Y (5x114.3 with a 64.1 mm hub) uses 73.1 to 64.1 rings. See our hub rings and installation kits.
Can the GF5 be drilled for a different bolt pattern or offset?
Yes. GF5 blanks can be drilled for 5 lug patterns from 5x100 to 5x120.7, with offsets from ET30 to ET45 on the 18x8.5, ET20 to ET40 on the 19x8.5, ET20 to ET45 on the 19x9.5 and 20 inch sizes, and ET20 to ET42 on the 21 inch sizes. Contact us for a custom drill.
Will the GF5 fit my car?
Fitment depends on bolt pattern, offset, hub size and brake clearance. Contact us with your year, make and model and we will confirm the right size and offset.
How fast does it ship?
In stock GF5 wheels are drilled if needed and shipped within 1 to 2 business days. Shipping is free on wheels to the contiguous 48 states.
Which center cap does the GF5 use?
The GF5 uses the GF5 center cap. Shop GF5 caps.
What is the warranty?
One year from the date of purchase against defects in materials and workmanship. Please inspect your wheels before mounting tires. Full terms are on our warranty page.
