FS01

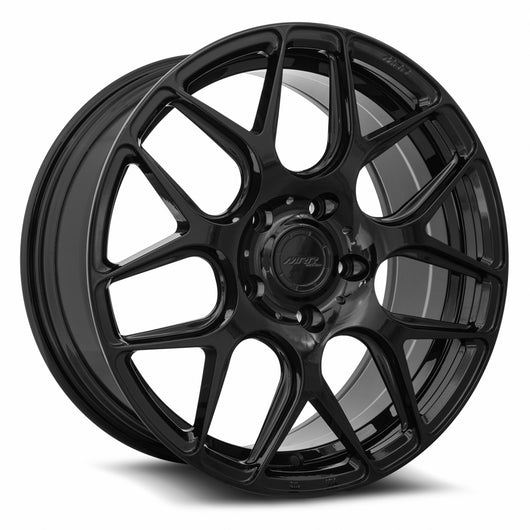

The MRR FS1 (FS01) is a lightweight flow forged wheel by MRR Wheels with a Y spoke mesh face. It is drilled to order for your bolt pattern, offset and center bore, in 18, 19, 20 and 21 inch diameters from 8.5 to 12 inches wide.

Finishes on this page are Gloss Black, Gloss Gun Metal, Gloss Bronze, Carbon Flash and Brushed Clear. Other FS1 finishes, including Matte Black, Silver, Brushed Tint, Candy Red and Candy Blue, are available on request. The FS1 is part of the MRR Light Weight FS Series, and the photos include gloss black FS1 wheels on C8 Corvettes.

Specifications

• Brand: MRR Wheels
• Model: FS1 (FS01)
• Construction: Flow forged (also called flow formed or rotary forged)
• Design: Y spoke mesh
• Finishes: Gloss Black, Gloss Gun Metal, Gloss Bronze, Carbon Flash, Brushed Clear (other finishes on request)
• Sizes: 18x8.5, 18x9.5, 18x10.5, 19x8.5, 19x9.5, 19x10, 19x11, 20x8.5, 20x10, 20x11, 20x12, 21x9, 21x10.5
• Bolt pattern and offset: Drilled to order for 5 lug patterns from 5x100 to 5x130, offset ranges by size below
• Center bore: Machined to fit your hub, 66.6 to 78.1 mm
• Load rating: 725 kg (1,598 lbs) per wheel on 18 to 20 inch, 815 kg (1,797 lbs) per wheel on 21 inch
• Weight: 22 to 28.9 lbs depending on size
• Center cap: MRR Light Weight FS Series cap (shop caps) or the FS Series extended aluminum cap
• Made in: Taiwan
• Warranty: One year against defects in materials and workmanship

Sizes, offset range, weight and load rating

Popular drill specs

FAQ

Is the price per wheel or per set?
The price shown is per wheel. Choose quantity 4 for a full set, or 2 of each width for a staggered set.

How do I choose the bolt pattern and offset?
FS1 wheels are drilled to your bolt pattern, offset and center bore. Contact us with your year, make and model before ordering and we will confirm the right spec. The offset range for each size is in the table above.

Is the FS1 a forged wheel?
The FS1 is flow forged, also called flow formed. The center is cast, then the barrel is spun and stretched under heat and pressure, which makes the barrel lighter and stronger than a conventional cast wheel. It is not a fully forged monoblock wheel. For fully forged options, see the MRR Forged Series.

Does the FS1 fit the C8 Corvette?
Yes. The C8 Stingray spec is 19x8.5 ET38 front and 20x11 ET48 rear, drilled 5x120. The photos show gloss black FS1 wheels on C8 Corvettes. More C8 sets are on our C8 Corvette wheels page.

Does the FS1 fit the Tesla Model 3?
Yes. FS1 sets for the Model 3 come in 18x9.5 ET35 or 19x9.5 ET35 in Gloss Black or Bronze. See our Tesla Model 3 wheels page.

Will the FS1 fit my car?
Fitment depends on bolt pattern, offset, hub size and brake clearance. Contact us with your year, make and model and we will confirm the right size and offset.

How fast does it ship?
FS1 wheels are drilled and finished to order and usually ship within 6 business days. Shipping is free on wheels to the contiguous 48 states.

Which center cap does the FS1 use?
The MRR Light Weight FS Series cap. An extended aluminum FS Series cap is also available. Shop FS Series caps or shop extended caps.

What is the warranty?
One year from the date of purchase against defects in materials and workmanship. Please inspect your wheels before mounting tires. Full terms are on our warranty page.
